Luna UI Documentation

PauseMenuView is an abstract UIViewComponent that wires up Continue / Load / Settings / Main Menu / Quit buttons and provides a working OnButtonContinueClicked() (calls LunaNavigation.PopBackStack()). Subclass it for the rest. Buttons are queried and wired in OnUILoaded(root) — PanelRenderer delivers the visual tree asynchronously, so no Awake-time element access.

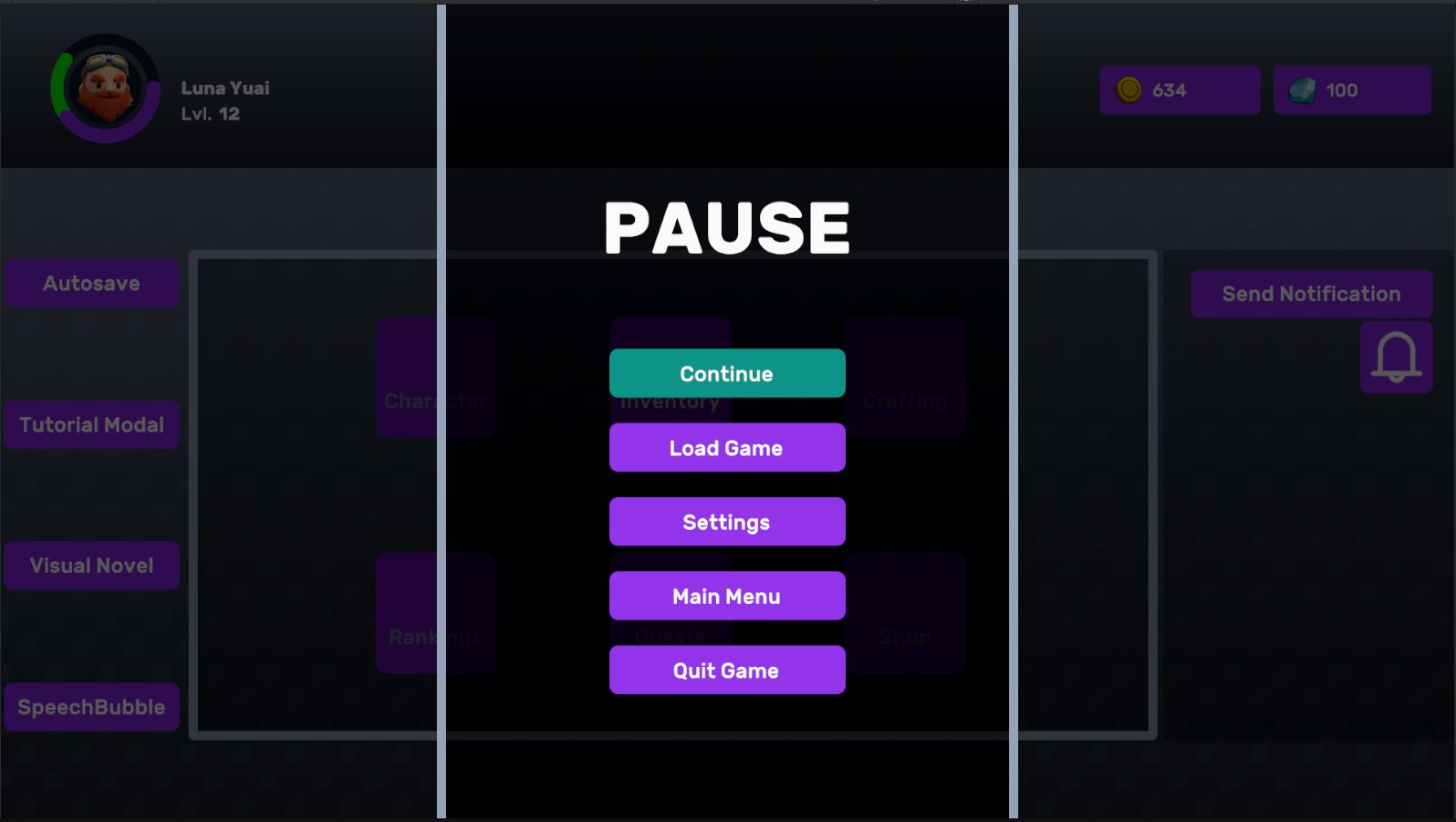

Pause Menu

Setup

UXML with these button names:
- ButtonContinue — Continue (handler provided)
- ButtonLoad — Load Game (abstract)
- ButtonSettings — Settings (abstract)
- ButtonMainMenu — Main Menu (abstract)
- ButtonQuit — Quit (abstract)
Subclass PauseMenuView and implement the four abstract handlers.

API

csharp

namespace CupkekGames.Luna;

public abstract class PauseMenuView : UIViewComponent

Methods

Method	Description
`OnButtonContinueClicked()`	Virtual. Default calls `LunaNavigation.PopBackStack()`.
`OnButtonLoadGameClicked()`	Abstract.
`OnButtonSettingsClicked()`	Abstract.
`OnButtonMainMenuClicked()`	Abstract.
`OnButtonQuitGameClicked()`	Abstract.
`OnUILoaded(VisualElement root)`	Override. Queries the five buttons and wires the click handlers once, on the first panel load. Call `base.OnUILoaded(root)` if you override.

Example

csharp

using UnityEngine;
using CupkekGames.Data;
using CupkekGames.Luna;
using CupkekGames.Luna.Navigation;
using CupkekGames.SceneManagement;

public class PauseMenuViewExample : PauseMenuView
{
    [Header("Nav Destinations")]
    [CatalogKeyConstraint(NavConstants.NavDestinationCatalogId)]
    [SerializeField] CatalogKey _settingsMenuDest;

    [CatalogKeyConstraint(NavConstants.NavDestinationCatalogId)]
    [SerializeField] CatalogKey _loadMenuDest;

    protected override void OnButtonLoadGameClicked()
    {
        if (!_loadMenuDest.IsEmpty) LunaNavigation.Push(_loadMenuDest);
    }

    protected override void OnButtonSettingsClicked()
    {
        if (!_settingsMenuDest.IsEmpty) LunaNavigation.Push(_settingsMenuDest);
    }

    protected override void OnButtonMainMenuClicked()
        => SceneLoader.Instance.LoadScene(1, SceneTransitionDatabase.Instance.Transitions.GetValue("Fade"));

    protected override void OnButtonQuitGameClicked()
        => Application.Quit();
}

The GameFull sample ships PauseEscapeTrigger (on its GameScope.prefab) — a small MonoBehaviour that wires the global Esc input to LunaNavigation.Push(pauseMenuDest) via an EscapeAction (from CupkekGames.Input). It re-arms itself with _escapeAction.Push() before pushing the pause menu, so after the pause menu pops off the nav back stack the next Esc press finds the handler again.

Use case: opening the pause menu from gameplay with Esc. The handler lives at the bottom of the InputEscapeManager stack — while UI views are open, Esc pops them first; once nothing else is on the stack, Esc reaches the handler and pushes the pause menu.
