Luna UI Documentation

ChoicePopupController is a UIViewComponent that renders an N-button modal — Yes/No, Save/Discard/Cancel, or any custom set. Buttons are built dynamically from a ChoicePopupChoice[] list (text + color), and there are two ways to drive it:

As a navigation destination (recommended) — register one popup prefab in your nav graph and push it from anywhere with per-call ChoicePopupArgs. The push is awaitable: PushAsync<int> resolves with the clicked choice index.
Embedded in a host view (legacy) — a node-less ChoicePopupController on the same GameObject as its caller, driven through OnButtonClick + Fade.FadeIn().

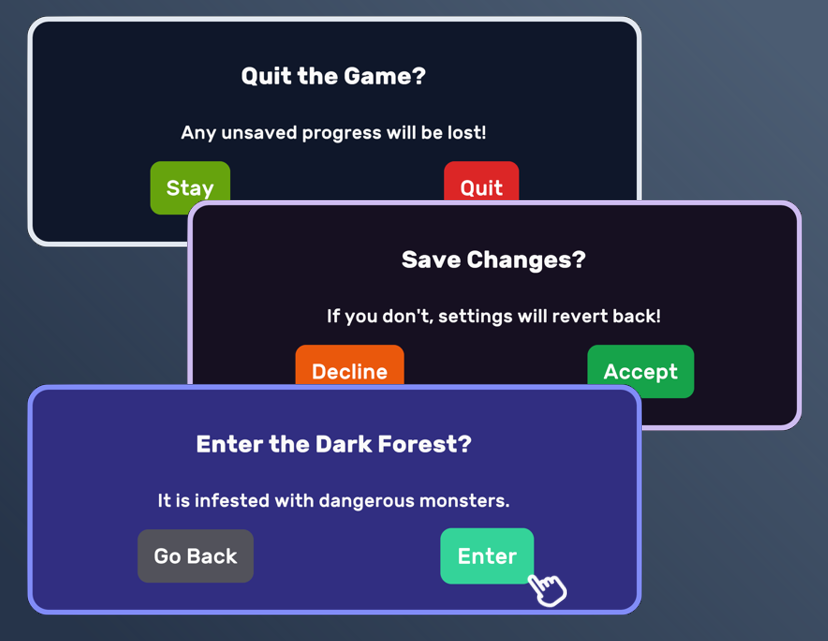

Confirmation Popup Example

One prefab in a global navigation graph serves every confirmation in the game — no per-screen popup copies. Register the popup prefab on a NavNode (typically dismissMode: Pop with a Dim backdrop, hidden until pushed), then push it with args:

csharp

async void OnReturnToMenuClicked()
{
    var result = await LunaNavigation.PushAsync<int>(_confirmDest, new ChoicePopupArgs
    {
        Header  = "Return to Main Menu",
        Body    = "Unsaved progress will be lost.",
        Choices = new[]
        {
            new ChoicePopupChoice("Return", "red"),
            new ChoicePopupChoice("Cancel", "slate"),
        },
    });

    if (!result.IsDismissed && result.Value == 0)
    {
        // First choice (index 0) — the affirmative action by convention.
        ReturnToMainMenu();
    }
}

ChoicePopupArgs fields are optional — a null/empty Header, Body, or Choices keeps the value serialized on the prefab, so a generic "Are you sure?" popup works with new ChoicePopupArgs { Header = "Delete Save 3" }.
Index 0 = affirmative. The controller pops the clicked index via LunaNavigation.Pop(i), resolving the PushAsync<int> task. Keep the convention that the first choice is the "do it" action so callers can test result.Value == 0.
Dismissal is a "no". Escape or a backdrop click pops the node without a result — result.IsDismissed is true and no choice index is delivered. Treat it like the cancel button.
Capture any state the confirm acts on before the push — the host view stays interactive-adjacent underneath, and the await can outlive a selection change (see how GameSaveViewList captures the slot in Save & Load).

The GameFull sample registers exactly one such node (confirm, in its global graph) and routes the pause menu's return-to-menu confirm and all save-list overwrite/delete confirms through it.

Embedded in a host view (legacy)

A ChoicePopupController without a nav node — e.g. living on the same GameObject as the view that uses it — is driven manually. On load it forces itself start-hidden (a node-less popup would otherwise show its placeholder texts the moment the host view opens), and a click just fades it back out instead of popping:

csharp

[SerializeField] ChoicePopupController _popup;

void OnDeleteClicked()
{
    _popup.TextHeader = "Delete save?";
    _popup.TextBody   = "This cannot be undone.";
    _popup.Choices = new[]
    {
        new ChoicePopupChoice("Delete", "red"),
        new ChoicePopupChoice("Cancel", "slate"),
    };
    _popup.OnButtonClick += OnConfirmDelete;
    _popup.UIView.Fade.FadeIn();
}

void OnConfirmDelete(int index)
{
    if (index == 0) DeleteSave();
    _popup.OnButtonClick -= OnConfirmDelete;
}

Prefer the nav-destination mode for new work — the embedded mode duplicates a popup per host view and can't be awaited.

Setup

1. UXML

The popup expects three named elements in the UXML hosted by the view's PanelRenderer:

Element	Name
`Label`	`Header`
`Label`	`Body`
`VisualElement`	`ButtonContainer`

The controller fills ButtonContainer with one Button per ChoicePopupChoice on fade-in.

2. Add component + configure

Add ChoicePopupController to the GameObject. In the inspector:

_textHeader / _textBody — default labels (used when a push passes no override).
_choices — the default button list (text + color name).
_buttonClasses — extra USS classes applied to every generated button (e.g. "btn-xl").

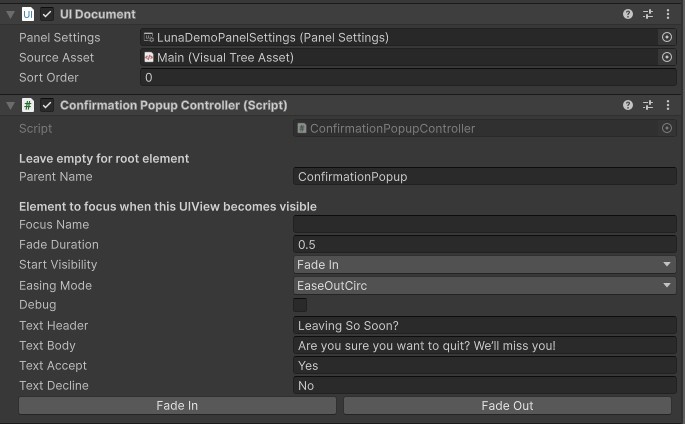

Confirmation Popup Inspector

For the nav-destination mode, also register the prefab on a NavNode in your graph and reference that destination key from callers.

API

csharp

namespace CupkekGames.Luna;

public class ChoicePopupController : UIViewComponent

Properties

Property	Type	Description
`Choices`	`ChoicePopupChoice[]`	Button list. Re-assigning rebuilds buttons on next fade-in.
`TextHeader`	string	Read/write the header label.
`TextBody`	string	Read/write the body label.

Events

csharp

public event Action<int> OnButtonClick;

Fires with the index of the clicked choice (in both modes, before the popup resolves). After a click all buttons are disabled, then the popup pops (nav mode) or fades out (embedded mode).

Subclassing hooks

The per-push pipeline is virtual, so specialized confirms can extend the base instead of duplicating it — the Showcase sample's purchase modal subclasses ChoicePopupController with extra preview/burst behavior this way:

Virtual	Called	Override to
`ApplyArgs(ChoicePopupArgs)`	On fade-in, when the push carried args	Apply extra fields from a `ChoicePopupArgs` subclass.
`RebuildButtons()`	On every fade-in	Replace dynamic button generation (e.g. fixed UXML buttons).
`ResolveChoice(int)`	After a click	Delay or decorate the resolution (default: `Pop(i)` with a node, `FadeOut()` without).

ChoicePopupArgs

csharp

public class ChoicePopupArgs
{
    public string Header;
    public string Body;
    public ChoicePopupChoice[] Choices;
}

Passed as the push args; read on fade-in via GetArgs<ChoicePopupArgs>(). Subclass it to carry extra data for a ChoicePopupController subclass.

ChoicePopupChoice

csharp

public ChoicePopupChoice(string text, string color);

color is a Luna color-class name ("lime", "red", "slate", etc. — see colors). Applied as a USS class on the button alongside btn.

Default behaviour

Escape: closes the popup — in nav mode the node's dismiss pops it (an awaiting PushAsync sees IsDismissed); a UIViewActionEscape(Fade.FadeOut) covers the embedded mode.
Initial focus: First button gets keyboard focus on fade-in (gamepad-friendly).
Cleanup: On fade-out, the button container is cleared.
