Luna provides a powerful Transition Animation system for creating smooth, reusable UI animations using UI Toolkit's CSS transitions. Build complex animation sequences declaratively via ScriptableObjects or programmatically with a fluent API.

Transition Animations

Features

Declarative Animations: Define animations in ScriptableObjects for easy reuse
Fluent Builder API: Create animations in code with chainable methods
52 Preset Animations: Ready-to-use animations across 7 categories
UIView Integration: Automatic animation triggers on fade events
Play Modes: Once, Loop, PingPong, and LoopCount
Parallel & Sequential: Combine animations to run together or in sequence

Quick Start

Using TransitionAnimator (MonoBehaviour)

The simplest way to add animations is through the TransitionAnimator component:

Add TransitionAnimator to a GameObject
Reference a UIDocument or UIViewComponent
Add animation nodes (preset assets or inline step groups)
Set play mode and trigger options

csharp

// Play animation manually
transitionAnimator.Play();

// Or enable "Play On Enable" in the Inspector

Using Preset Assets

Luna includes 52 preset animation assets. Simply reference them in the TransitionAnimator:

csharp

// Load and play a preset directly
TransitionSequenceAsset fadeIn = Resources.Load<TransitionSequenceAsset>("TransitionPresets/Base/FadeIn");
var player = fadeIn.CreatePlayer();
player.Play(myElement);

Using the Fluent API

Build animations programmatically with the TransitionSequence builder:

csharp

var sequence = new TransitionSequence()
    .Opacity(0f, 0.3f, EasingMode.EaseOut)  // Fade out
    .Scale(0.8f, 0.3f, EasingMode.EaseOut)  // Scale down
    .Build();

var player = new TransitionSequencePlayer(sequence);
player.OnComplete += () => Debug.Log("Animation complete!");
player.Play(myElement);

Components

TransitionAnimator

MonoBehaviour that plays transition animations on VisualElements.

Inspector Properties

Property	Description
Nodes	Ordered list of animation nodes (inline step groups or sub-sequence asset references)
Play Mode	Once, Loop, PingPong, or LoopCount
Loop Count	Number of loops when Play Mode is LoopCount
UI View Component	Optional UIViewComponent reference for target resolution
UI Document	UIDocument reference (used when no UIViewComponent is set)
Element Name	Name of the target VisualElement (leave empty for root)
Fade Trigger	Which UIView fade event triggers this animation
Play On Enable	Automatically play when the component is enabled

Public Methods

csharp

// Play the animation on the configured element
public void Play()

// Play on a specific element
public void Play(VisualElement target)

// Stop playback
public void Stop()

// Pause/Resume
public void Pause()
public void Resume()

// Create a sequence or player from this animator's nodes
public TransitionSequence CreateSequence()
public TransitionSequencePlayer CreatePlayer()

Events

csharp

UnityEvent OnComplete;  // Fired when animation completes
UnityEvent OnStopped;   // Fired when animation is stopped

TransitionSequenceAsset

ScriptableObject for defining reusable animation sequences. Create via: Create > CupkekGames > Luna > Transition Sequence

Supports:

Inline step groups (sequential or parallel)
Sub-sequence references (composition)
Recursive sub-sequence inlining with cycle detection

TransitionSequencePlayer

Runtime player for executing transition sequences on a VisualElement.

csharp

// Create from a built sequence
var player = new TransitionSequencePlayer(sequence);

// Or from an asset
var player = myAsset.CreatePlayer();

// Enable debug logging
player.Debug = true;

// Play on target
player.Play(myElement);

// Check state
bool isPlaying = player.IsPlaying;
bool isPaused = player.IsPaused;
int currentNode = player.CurrentNodeIndex;
int currentIteration = player.CurrentIteration;

Events

csharp

event Action OnComplete;          // Sequence fully complete
event Action<int> OnIterationComplete;  // After each loop pass
event Action OnStopped;           // Playback stopped via Stop()

TransitionSequence Builder

The TransitionSequence class provides a fluent API for building animations:

Style Animations

csharp

var sequence = new TransitionSequence()
    // Opacity
    .Opacity(1f, 0.3f)
    .Opacity(0f, 0.3f, EasingMode.EaseOut)

    // Scale (uniform or separate x/y)
    .Scale(1.2f, 0.2f)
    .Scale(new Vector2(1.5f, 1f), new TransitionTimingConfig(0.3f, EasingMode.EaseInOut))

    // Translate (pixels or percent)
    .Translate(0f, -20f, 0.3f)
    .TranslatePercent(0f, -50f, 0.3f)

    // Rotate (degrees)
    .Rotate(360f, 0.5f)

    // Colors
    .BackgroundColor(Color.red, 0.2f)
    .Color(Color.blue, StyleColorProperty.BorderColor, new TransitionTimingConfig(0.2f))

    // Length properties
    .Width(new Length(200, LengthUnit.Pixel), new TransitionTimingConfig(0.3f))
    .Height(new Length(50, LengthUnit.Percent), new TransitionTimingConfig(0.3f))

    .Build();

Parallel Animations

Run multiple animations simultaneously:

csharp

var sequence = new TransitionSequence()
    .Together(sub => sub
        .Opacity(1f, 0.3f)
        .Scale(1f, 0.3f)
        .Translate(0f, 0f, 0.3f)
    )
    .Build();

Delays and Callbacks

csharp

var sequence = new TransitionSequence()
    .Opacity(0f, 0.3f)
    .Delay(0.5f)  // Wait 500ms
    .Callback(() => Debug.Log("Halfway done!"))
    .Opacity(1f, 0.3f)
    .Build();

Play Modes

csharp

var sequence = new TransitionSequence()
    .Scale(1.1f, 0.2f)
    .Scale(1f, 0.2f)
    .WithPlayMode(TransitionPlayMode.Loop)  // Loop forever
    .Build();

// Or loop a specific number of times
var sequence = new TransitionSequence()
    .Rotate(360f, 1f)
    .WithPlayMode(TransitionPlayMode.LoopCount)
    .WithLoopCount(3)  // Rotate 3 times
    .Build();

Multi-Property Animation

Animate multiple properties with shared timing:

csharp

var timing = new TransitionTimingConfig(0.3f, EasingMode.EaseOutBack);

var sequence = new TransitionSequence()
    .Multi(timing,
        new OpacitySetter(1f),
        new ScaleSetter(new Vector2(1f, 1f)),
        new TranslateSetter(Translate.None())
    )
    .Build();

Preset Animations Library

Luna includes 52 ready-to-use animation presets organized into categories:

Base (17 presets)

Preset	Description
FadeIn / FadeOut	Opacity transitions
ScaleIn / ScaleOut	Scale from/to zero
SlideInUp/Down/Left/Right	Slide from off-screen
SlideOutUp/Down/Left/Right	Slide to off-screen
FlipIn / FlipOut	3D flip effect via scaleX
RotateIn / RotateOut	Rotation with opacity
BounceIn	Bouncy scale entrance

Attention (8 presets)

Preset	Description
Shake / ShakeVertical	Horizontal/vertical shaking
Wobble	Rotation wobble
Jello	Elastic jiggle effect
Rubber	Rubber band stretch
Flash	Rapid opacity flashes
Heartbeat	Pulsing scale
ColorPulse	Background color pulse

Feedback (7 presets)

Preset	Description
Pop	Quick scale bump
PopBounceIn / PopBounceOut	Bouncy pop entrance/exit
Press	Button press effect
Lift / LiftReset	Hover lift effect
Squish	Squash and stretch

Loading (4 presets)

Preset	Description
Spin	Continuous rotation
Bounce	Vertical bounce
Blink	Opacity blink
Breathe	Gentle scale pulse

Modals (9 presets)

Preset	Description
ZoomIn / ZoomOut	Scale with opacity
RiseIn / RiseOut	Rise from bottom
DropIn	Drop from top with bounce
SwingIn / SwingOut	Rotation swing
FoldY / UnfoldY	Vertical fold effect

Notifications (4 presets)

Preset	Description
SlideInTop / SlideInBottom	Notification slide in
SlideOutTop / SlideOutBottom	Notification slide out

Transitions (4 presets)

Preset	Description
PushInLeft / PushInRight	Page push entrance
PushOutLeft / PushOutRight	Page push exit

UIView Integration

UIViews can automatically play transition animations on fade events. See UIView Transitions for details.

csharp

// Add transition to UIView
myUIView.AddTransition(new UIViewTransitionEntry
{
    Animation = popBounceInAsset,
    Trigger = FadeEventTrigger.FadeInStart,
    ElementName = "modal-content"
});

TransitionTimingConfig

Encapsulates timing configuration for transitions:

csharp

var timing = new TransitionTimingConfig(
    duration: 0.3f,           // Duration in seconds
    easing: EasingMode.EaseOut,  // Easing function
    delay: 0.1f               // Delay before start
);

Available Easing Modes

All Unity UI Toolkit easing modes are supported:

Linear
Ease, EaseIn, EaseOut, EaseInOut
EaseInSine, EaseOutSine, EaseInOutSine
EaseInQuad, EaseOutQuad, EaseInOutQuad
EaseInCubic, EaseOutCubic, EaseInOutCubic
EaseInCirc, EaseOutCirc, EaseInOutCirc
EaseInElastic, EaseOutElastic, EaseInOutElastic
EaseInBack, EaseOutBack, EaseInOutBack
EaseInBounce, EaseOutBounce, EaseInOutBounce

Example: Button Hover Effect

csharp

public class ButtonHoverEffect : MonoBehaviour
{
    [SerializeField] private TransitionSequenceAsset _hoverIn;
    [SerializeField] private TransitionSequenceAsset _hoverOut;

    private UIDocument _doc;
    private TransitionSequencePlayer _playerIn;
    private TransitionSequencePlayer _playerOut;
    private VisualElement _button;

    void Start()
    {
        _doc = GetComponent<UIDocument>();
        _button = _doc.rootVisualElement.Q<Button>("my-button");

        _playerIn = _hoverIn.CreatePlayer();
        _playerOut = _hoverOut.CreatePlayer();

        _button.RegisterCallback<PointerEnterEvent>(e =>
        {
            _playerOut.Stop();
            _playerIn.Play(_button);
        });

        _button.RegisterCallback<PointerLeaveEvent>(e =>
        {
            _playerIn.Stop();
            _playerOut.Play(_button);
        });
    }
}

Example: Loading Spinner

csharp

// Create a continuous spinning animation
var spinSequence = new TransitionSequence()
    .Rotate(360f, 1f, EasingMode.Linear)
    .WithPlayMode(TransitionPlayMode.Loop)
    .Build();

var spinner = new TransitionSequencePlayer(spinSequence);
spinner.Play(loadingIcon);

// Stop when loading completes
spinner.Stop();

Demo Scenes

The Components sample includes three demo scenes:

TransitionAnimationDemo: Interactive demo with controls for testing animations

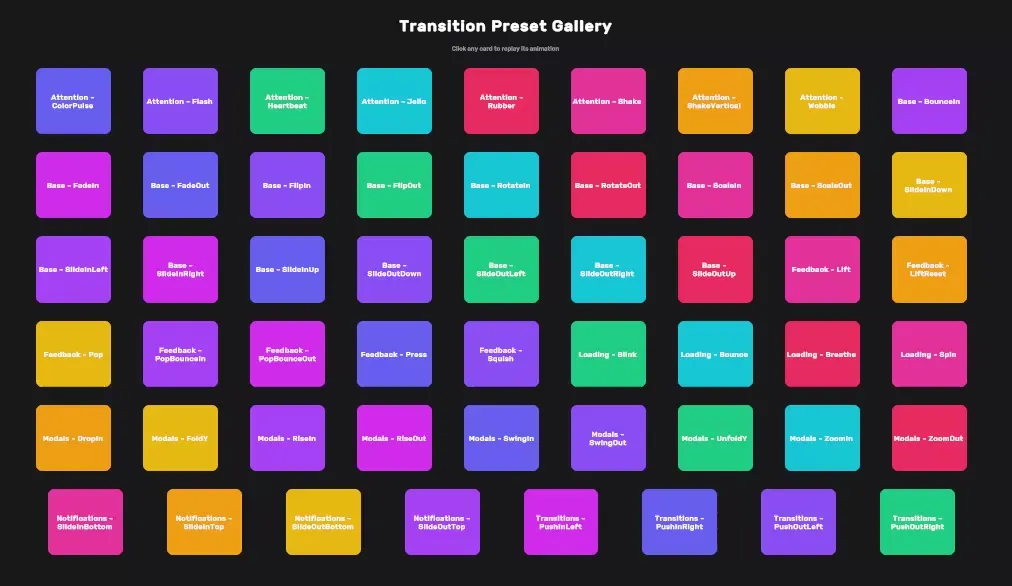

TransitionPresetGallery: Visual gallery of all 52 preset animations
UIViewTransitionDemo: Demonstrates UIView fade event integration

Import the Components sample to explore these demos.
